TPC-SD2221-B3F4

Verfügbarkeit: 0
Preis: 1.602,73 € 1602.73
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: DAHUA
Produkt-Code/SKU: TPC-SD2221-B3F4

Beschreibung

Lite Series| DH-TPC-SD2221     System Overview  Featuring a dual lens, fixed bullet camera, this series provides an  all-in-one solution for capturing video surveillance for indoor and  outdoor applications. Together with thermal and visible-light Technology,  the camera is the perfect solution for dark, small area monitoring  applications. The series combines one thermal camera for monitoring  in total darkness and one visible camera with smart IR for confirming  details.   Functions      Uncooled Vox Technology  Dahua thermal cameras use uncooled Vox sensor technology. Because of  small size and better performance, it’s cost-effective solution for thermal  security.  High Sensitivity  High thermal sensitivity(<50mK) makes cameras capture more image  details and temperature difference information.  Fire Detection & Alarm  With built-in Fire detect function, the camera has the ability to  detect fire in a long distance. because thermal camera is sensitive to  temperature, so the accuracy of fire detection will be higher than visible-  light camera.  Smart Alarm Linkage  When an abnormal event is detected by thermal or visi...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

Lite Series| DH-TPC-SD2221

System Overview
Featuring a dual lens, fixed bullet camera, this series provides an
all-in-one solution for capturing video surveillance for indoor and
outdoor applications. Together with thermal and visible-light Technology,
the camera is the perfect solution for dark, small area monitoring
applications. The series combines one thermal camera for monitoring
in total darkness and one visible camera with smart IR for confirming
details.
Functions


Uncooled Vox Technology
Dahua thermal cameras use uncooled Vox sensor technology. Because of
small size and better performance, it’s cost-effective solution for thermal
security.
High Sensitivity
High thermal sensitivity(<50mK) makes cameras capture more image
details and temperature difference information.
Fire Detection & Alarm
With built-in Fire detect function, the camera has the ability to
detect fire in a long distance. because thermal camera is sensitive to
temperature, so the accuracy of fire detection will be higher than visible-
light camera.
Smart Alarm Linkage
When an abnormal event is detected by thermal or visible-light channel,
the white light and loudspeaker will turn on to make a visual or voice
prompt , then record and snapshot. The white light and the content of

loudspeaker is configurable.
Intelligent Video System (IVS)
With built-in intelligent video analytics, the camera has the ability to
detect and analyze moving objects for improved video surveillance. The
camera provides optional standard intelligence at the edge allowing
detection of multiple object behaviors such as abandoned or missing
objects. IVS also supports Tripwire analytics, allowing the camera to
detect when a pre-determined line has been crossed.
Environmental
With a temperature range of -30 °C to +60 °C, the camera is designed for
extreme temperature environments. Subjected and certified to rigorous
dust and water immersion tests, the IP66 rating makes it suitable for
demanding outdoor applications.
Protection
Supporting ±15% input voltage tolerance, this camera suits even the
most unstable conditions for outdoor applications. Its 6KV lightning
rating provides protectection against the camera and its structure from
the effects of lightning.
www.dahuasecurity.com

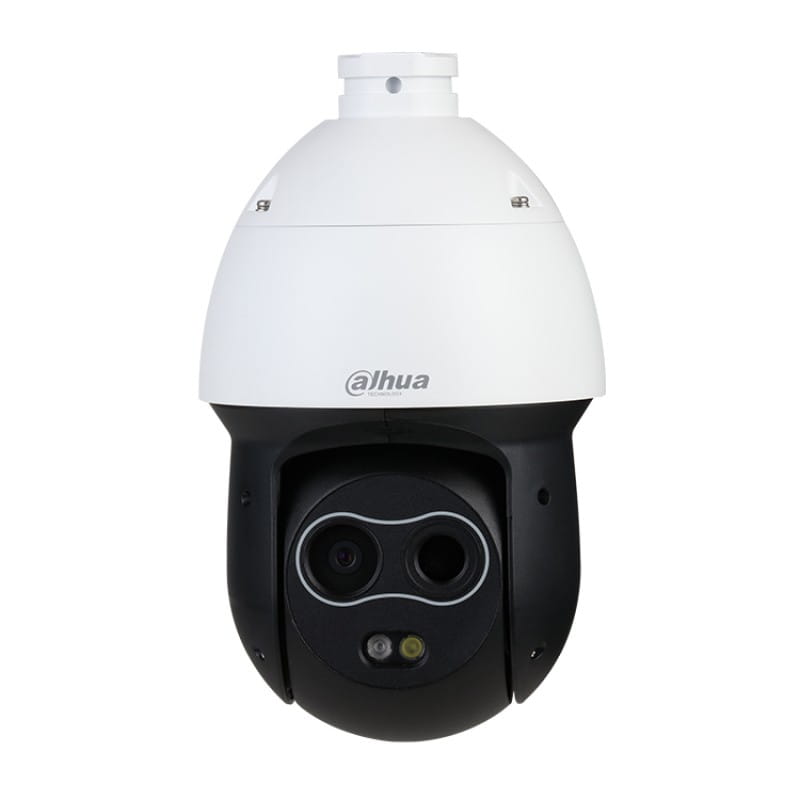

DH-TPC-SD2221
Thermal Network Value Hybrid Speed Dome Camera

· 256x192 VOx uncooled thermal sensor technology
· 1/2.8” 2Megapixel progressive scan CMOS
· Support ROI, motion detection, color palettes
· Smart alarm linkage with white light & loudspeaker
· Support Fire detection & alarm
· Up to 300 presets, 5 auto scan, 8 tour, 5 patern
· Built-in 2/1 alarm in/out
· Micro SD memory, IP66, PoE

N,

*1
"OBMZTJT
%$7

4FSJFT
Lite

'JSF%FUFDUJPO


www.dahuasecurity.com
Lite Series| DH-TPC-SD2221

Technical Specification
Thermal Camera
Image SensorUncooled VOx Microbolometer
Effective Pixels
256(H) x 192(V)
Pixel Size
12um
Thermal Sensitivity (NETD)
≤50mK
Spectral Range
8 ~ 14um
Image Setting
Brightness/Sharpness/ROI/AGC/FFC/3D DNR
Color Palettes
18(Whitehot/Blackhot/Ironrow/Icefire/
Fusion/Rainbow/Globow/Iconbow1/
Iconbow2 .etc)
Thermal Lens
Lens TypeFixed/F1.0
Focus ControlAthermalized, Focus-free
Focal Length3.5mm7mm
Angle of ViewH: 50.6°, V: 37.8°H: 24°, V: 18°
Effective Distance①
Human(1.8m*0.5m)
D: 146m
R: 38m
I: 19m
D: 292m
R: 75m
I: 38m
Effective Distance
Vehicle(4.0m*1.4m)
D: 389m
R: 97m
I: 49m
D: 778m
R: 194m
I: 97m
Visible Camera
Image Sensor1/2.8" 2M CMOS
Effective Pixels1920(H)x1080(V)
Electronic Shutter Speed1/1 ~ 1/30,000s
Min. IlluminationColor: 0.005Lux; B/W: 0.0005Lux; 0Lux (IR on)
IR Distance35m50m
IR On/Off ControlAuto/Manual
IR LEDs1
Visible Lens
Focal Length4mm8mm
Max ApertureF2.0F1.9
Angle of ViewH: 84° V: 45°H: 40° V: 22°
Close Focus Distance0.2m
PTZ
Pan/Tilt RangePan: 0° ~ 360° endless; Tilt: -15° ~ 90°
Manual Control SpeedPan: 0.1° ~ 200° /s; Tilt: 0.1° ~ 120° /s
Preset SpeedPan: 0.1° ~ 240° /s; Tilt: 0.1° ~ 200° /s
Preset300
PTZ Mode5 Auto Scan, 8 Tour, 5 Pattern, Auto Pan
Power Up Action
Auto restore to previous PTZ and lens status
after power failure
Idle Moton
Actvate Preset/ Scan/Tour/Patern if there is no
command in the specifed period
ProtocolDH-SD, Pelco-P/D (Auto recogniton)

Video
CompressionH.265/H.264M/H.264H/H.264B/MJPEG
Frame Rate
Main Stream:
50Hz:
Thermal: 1280*960/1024*768/640*480/256*19
2@25fps
Visible: 1920*1080/1280*720/704*576@25fps
60Hz:
Thermal: 1280*960/1024*768/640*480/256*19
2@30fps
Visible: 1920*1080/1280*720/704*480@30fps
Sub Stream:
50Hz:
Thermal: 640*480/256*192@25fps
Visible: 704*576/352*288@25fps
60Hz:
Thermal: 640*480/256*192@30fps
Visible: 704*480/352*240@30fps
Bit Rate ControlCBR/VBR
Bit RateH.264: 640 ~ 8192Kbps
Day/NightAuto(ICR)/Color/B/W
BLC ModeBLC/HLC/DWDR
White BalanceAuto/Indoor/ Outdoor/Manual etc.
Noise Reduction2D DNR/3D DNR
Motion DetetionOff/On (4 zone, Rectangle)
Region of InterestOff/On (4 zone)
DefogOff/On
Flip180°
MirrorOff/On
Privacy MaskingOff/On (4 area, Rectangle)
Audio
CompressionG.711a/G.711Mu/AAC/PCM
Intelligence
IVSTripwire, Intrusion
Advanced Intelligent Functions
Fire detection & alarm, Cold/Hot spot trace,
Human/Vehicle classifcaton, Smoking detection
Tracking Trigger ModeManual/Auto (alarm triggered)
Tracking Trigger EventTargetng, Tracking, Recording, Snapshot, Alarm, etc.
Network
EthernetRJ-45 (10/100Base-T)
Protocol
HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP,
DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS,
UPnP, NTP
InteroperabilityONVIF Profile S & G, API
Streaming MethodUnicast/Multicast
Max. User Access20 Users

Lite Series | DH-TPC-SD2221

Ordering Information
TypePart NumberDescription
DH-TPC-SD2221
DH-TPC-SD2221P-B3F4
DH-TPC-SD2221N-B3F4
Thermal: 256x192 3.5mm lens
Visible: 2MP 4mm lens
DH-TPC-SD2221P-B7F8
DH-TPC-SD2221N-B7F8
Thermal: 256x192 7mm lens
Visible: 2MP 8mm lens
www.dahuasecurity.com

Edge Storage
Micro SD (256G)
Memory status display (Normal/Error/Active/
Formatting/Lock)
NAS (Network Attached Storage)
Local PC for instant recording
Web Viewer>IE8, Management SoftwareSmart PSS, DSS
Smart PhoneAndroid, IOS
Certifications
CertificationCE (EN 60950:2000) FCC (FCC Part 15 SubpartB )
Interface
Video Interface1 port(BNC)
Audio InterfaceIn/Out 1/1
RS485Support
Alarm2/1 In/Out
Electrical
Power SupplyDC 12V±15%/PoE+
Power ConsumptionMax 24W
Environmental
Operating Condition-30°C ~ +60°C (-22°F ~ +140°F)
Strorage Conditions-40°C ~ +70°C (-40°F ~ +158°F)
Relative Humidity≤ 95%
Ingress Protection
IP66
Construction
CasingMetal
Dimensions295mm x Φ160mm (11.61" x Φ6.30")
Net Weight3.2Kg (7.05 lb)
Cross Weight4.7Kg (10.36 lb)
Dimensions (mm)
Note:
①Effective distance values shown are nominal values and should be used as estimates
only. Exact value calculations depend on a wide variety of conditions.
②D: Detection Distance
③R: Recognition Distance
④I: Identification Distance

Mounting Type

160[6.3'']

139.5[5.49'']

49.8[1.84'']
270.4[10.64'']

120.50[4.74'']

Accessories
Include:

PFB305W
Optional:
PFA111
Mount Adapter
PFA140
Power Box
PFA150
Pole Mount
PFA120
Junction Box
PFB300C
Ceiling Mount
PFA151
Corner Mount

DC12V/3A
Power Adapter

Corner Mount
PFB305W + PFA151PFB305W + PFA150
Pole Mount
PFB305W + PFA120
PFB305W + PFA150
Junction Mount
Ceiling Mount
