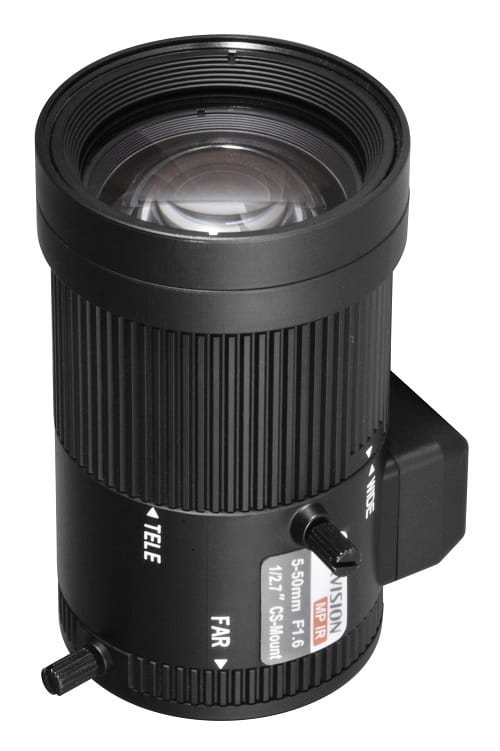

TV0550D-MPIR
product unavailable
zur Wunschliste hinzufügen
Beschreibung
Specification Vari-focal Auto Iris DC Drive 3MP IR ASPHERICAL Mount CS-Mount Flange Back Length 12.5mm M.O.D 0.3m Iris Dimension Φ43*76.71 Focus Weight 102g Zoom Operating Temperature -10~50℃ D 61.2°～6.8° 49.6°～5.5° H 49.6°～5.5° 40.0°～4.5° V 37.6°～4.2° 30.2°～3.4° Lens Picture Max. Image formatΦ6.5mm（1/2.7"） Control DC Auto Iris Manual Manual Field of View 1/3" 1/4" Dimension F number F1.7-C CCTV LENS SPEC Model NO. TV0550D-MPIR Focallength 5-50mm...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:
Specification
Vari-focal Auto Iris DC
Drive
3MP IR ASPHERICAL
Mount CS-Mount
Flange Back Length 12.5mm
M.O.D 0.3m
Iris Dimension Φ43*76.71
Focus Weight 102g
Zoom
Operating
Temperature
-10~50℃
D 61.2°～6.8° 49.6°～5.5°
H 49.6°～5.5° 40.0°～4.5°
V 37.6°～4.2° 30.2°～3.4°
Lens Picture
Max. Image formatΦ6.5mm（1/2.7"）
Control
DC Auto Iris
Manual
Manual
Field of
View
1/3" 1/4"
Dimension
F number F1.7-C
CCTV LENS SPEC
Model NO. TV0550D-MPIR
Focallength 5-50mm
