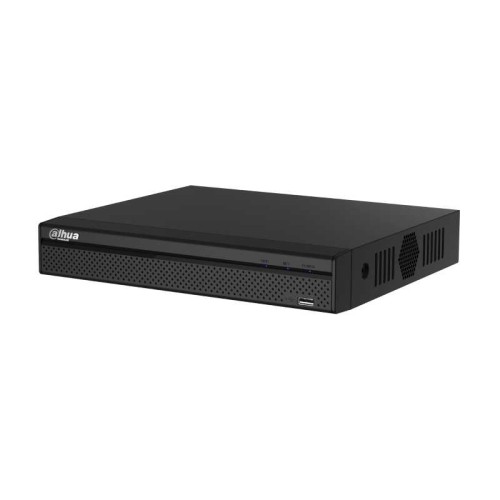

XVR5104H-I

Verfügbarkeit: 0
Preis: 138,74 € 138.74
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: DAHUA
Produkt-Code/SKU: XVR5104H-I

Beschreibung

AI Series | DH-XVR5104H-I    www.dahuasecurity.com    DH-XVR5104H-I  4 Channel Penta-brid 1080P Mini 1U Digital Video Recorder     Series   AI     Plug&Play  P2P  1080p    HDMI / VGA     4CH  Smart H.264+    H.265   Long Distance    1200m    HDCVI/AHD/TVI/CVBS Auto-detect  The XVR can auto recognize the signal of front-camera without any  setting. It makes operation more friendly and convenient.    High Definition Camera Input  The XVR supports up to 5MP HDCVI camera and 6MP IP camera input.  Coaxial Audio/Upgrade/Alarm  The integrated design can reduce wiring troubles which makes it much  more cost-effective and convenient for installation.  Long Distance Transmission  The HDCVI system supports long distance transmission over coaxial cable  and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for 720P.  Smart Search  Extract and classify person and vehicles from massive video data, easy  for end users to trace historical informaton and analyze. Person &  Vehicle optonal for playback to achieve quick target search,...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

AI Series | DH-XVR5104H-I

www.dahuasecurity.com

DH-XVR5104H-I
4 Channel Penta-brid 1080P Mini 1U Digital Video Recorder

Series
AI

Plug&Play
P2P
1080p

HDMI / VGA

4CH
Smart H.264+

H.265
Long Distance

1200m

HDCVI/AHD/TVI/CVBS Auto-detect
The XVR can auto recognize the signal of front-camera without any
setting. It makes operation more friendly and convenient.

High Definition Camera Input
The XVR supports up to 5MP HDCVI camera and 6MP IP camera input.
Coaxial Audio/Upgrade/Alarm
The integrated design can reduce wiring troubles which makes it much
more cost-effective and convenient for installation.
Long Distance Transmission
The HDCVI system supports long distance transmission over coaxial cable
and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for 720P.
Smart Search
Extract and classify person and vehicles from massive video data, easy
for end users to trace historical informaton and analyze. Person &
Vehicle optonal for playback to achieve quick target search, saving event
retrieval tme.
· H.265+/H.265 dual-stream video compression
· Supports HDCVI/AHD/TVI/CVBS/IP video inputs
· Max 6 channels IP camera inputs, each channel up to 6MP;
Max 24Mbps incoming bandwidth
· Perimeter Protection and SMD Plus
System Overview
Dahua Technology, a world-leading video-centric smart IoT solution and
service provider, debuted its new XVR series, XVR5000-I/XVR7000-4KL-I
featuring full-channel SMD Plus to benefit customers from AI upgrade. The
series are designated to reduce false-alarm rates and human surveillance
costs, thus bringing great value to customers in search of products with
accurate human/vehicle alarm to raise the security level of various indoor
and outdoor facilities.
Renovated from the original SMD technology running on CPU, the new
SMD Plus adopts independent AI smart chip loaded with new deep-learning
algorithm, enabling the computing power improved by 10 times. As a
result, SMD Plus can recognize moving objects and differentiate human and
vehicles, so as to effectively avoid false alarms caused by tree branches,
insects, shadows, wind or other environmental factors. Meanwhile, users
are allowed to select people or vehicles for playback, thus greatly saved
target search time.
Functions
Perimeter Protection
Automatically filtering out false alarms caused by animals, rustling leaves,
bright lights, etc. Enables system to act secondary recognition for the
targets. Improving alarm accuracy.
SMD Plus
SMD Plus, referred to as Smart Motion Detection Plus, which is an
upgrading version of SMD that greatly improves the alarm accuracy by
loading deep-learning algorithm. It analyzes person and vehicle shapes
based on motion detection and send alarms only when person and vehicle
intrudes.
Smart H.265+
Smart Codec, H.265+ can reduce up to 90% bit rate and storage
requirements compared with H.264 without having to invest in new
cameras.

www.dahuasecurity.com
AI Series | DH-XVR5104H-I

Technical Specification
System
Main ProcessorEmbedded Processor
Operating System
Embedded LINUX
Perimeter Protection
Perimeter protection
1.AI by DVR: Detection alarm for human and vehicle. Filter
misinformation such as leaves and light.
2.Function configuration: Set at most 10 rules such as area
intrusion and tripwire intrusion.
3.Performance: 2 channels
Live View
1. Rule box inspection: Configure the rule box and object
inspection box.
2.Smart panel: Display object classification (human, vehicle),
event types, triggering time, image matting and object types.
Attribute is not supported.
3. Counting: Count people in Peopletotal. Count motor vehicles
in Vehicle. Support exporting of associated event playback
before and after 10 seconds.
Playback
1. Search conditions: According to channels, time, event types
and target types.
2.Functions: Support search of associated event playback or
snapshot before and after 10 seconds.
3. Snapshot capacity: 500,000
SMD Plus
SMD Plus
1. AI by DVR: Motion detection alarm for human and vehicle.
Filter misinformation such as leaves and light.
2. Performance: 4 channels , AI by DVR
PreviewPreview: Configure and inspect detection box
Playback
1.Playback: Search videos through channels, time and target
types.
2.Functions: Support search of associated event playback
before and after 10 seconds.
Video and Audio
Analog Camera Input4 Channel, BNC
HDCVI Camera 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps
CVBS Camera PAL/NTSC
IP Camera Input4+2 Channel, each channel up to 6MP
Audio In/Out1/1, RCA
Two-way TalkReuse audio in/out, RCA
Recording
CompressionH.265+/H.265/H.264+/H.264
Resolution5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate
Main stream: All channel 5M-N(1~10fps);
4M-N/1080P(1~15fps); 1080N/720P/960H/
D1/CIF (1~25/30fps)
Sub stream: D1/CIF(1~15fps)
Bit Rate32Kbps ~ 6144Kbps Per Channel
Record Mode
Manual, Schedule (General, Continuous), MD (Video detection:
Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-
record: 10 ~ 300 sec
Audio CompressionAAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate8KHz, 16 bit Per Channel
Audio Bit Rate64Kbps Per Channel


Display
Interface1 HDMI ,1 VGA
Resolution1920x1080, 1280x1024, 1280x720
Multi-screen Display
When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/8
OSD
Camera title, Time, Video loss, Camera lock, Motion
detection, Recording
Network
Interface 1 RJ-45 Port (100M)
Network Function
HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP,
RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS,
FTP, Alarm Server, P2P,IP Search (Supports Dahua IP
camera, DVR, NVS, etc.)
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot,
Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 x 18), Video Loss,
Tampering and Diagnosis
Alarm inputN/A
Relay OutputN/A
Playback and Backup
Playback1/4
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to
second)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File,
Previous File, Next Camera, Previous Camera, Full Screen,
Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Storage
Internal HDD1 SATA Port, up to 6TB capacity
eSATAN/A
Auxiliary Interface
USB2 USB 2.0
RS232N/A
RS4851 Port, for PTZ Control
Electrical
Power SupplyDC12V/1.5A
Power Consumption
(Without HDD)
<10W
Construction
DimensionsMini 1U, 325mmx255mmx55mm (12.8" x 10" x 2.2")
Net Weight
(without HDD)
1.0kg (2.2lb)
Gross Weight1.9kg (4.2lb)
InstallationDesktop installation

AI Series | DH-XVR5104H-I
Rev 001.001© 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Rear Panel
DH-XVR5104H-I

1
2
3
4 5 6 7
8
9
10

1
VIDEO IN
6
RS485 Interface
2
AUDIO IN, RCA Connector
7
USB Interface
3
AUDIO OUT, RCA Connector
8
DC 12V Power Input
4
HDMI Interface
9
VGA Interface
5
Network Interface
10
Power Switch

Environmental
Operating Conditions
-10°C ~ +45°C (+14°F ~ +113°F), up to 55°C/131°F with case fan,
10~ 90% RH
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Third-party Support
Third-party Support
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus,
Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony,
Videotec, Vivotek, and more
Certifications
Certifications
FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN
55024

Ordering Information
TypePart NumberDescription
4 Channel XVRDH-XVR5104H-I
4 Channel Penta-brid 1080P Mini 1U
Digital Video Recorder
Dimensions (mm)

255.1mm
243mm
325mm

55mm
