XVR5216AN-I2

Verfügbarkeit: 0
Preis: 463,17 € 463.17
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: DAHUA
Produkt-Code/SKU: XVR5216AN-I2

Beschreibung

www.dahuasecurity.com    DH-XVR5216AN-I2  16 Channel Penta-brid 5M-N/1080P 1U WizSense Digital Video Recorder    · H.265+/H.265 dual-stream video compression  · Supports HDCVI/AHD/TVI/CVBS/IP video inputs  · Max 24 channels IP camera inputs, each channel up to 6MP; Max   128 Mbps incoming bandwidth  · Perimeter Protection and SMD Plus  · Up to 2 channels video stream (analog channel ) human face recognition  · IoT & POS functionalities  System Overview  Dahua Technology, a world-leading video-centric smart IoT solution and  service provider, debuted its new XVR series, XVR5000-I2 featuring  full-channel SMD Plus (except for 32-channel devices) to benefit  customers from AI upgrade. The series are designated to reduce  false-alarm rates and human surveillance costs, thus bringing great value  to customers in search of products with accurate human/vehicle alarm  to raise the security level of various indoor and outdoor facilities.  Functions  Real Time Face Recognition  Video stream real time face recognition. Facial attributes analysis  features including gender, age, expression, glasses, moustache, mouth  mask. Identify people and also capture, record faces with metadata.  Facial feature fil...

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

www.dahuasecurity.com

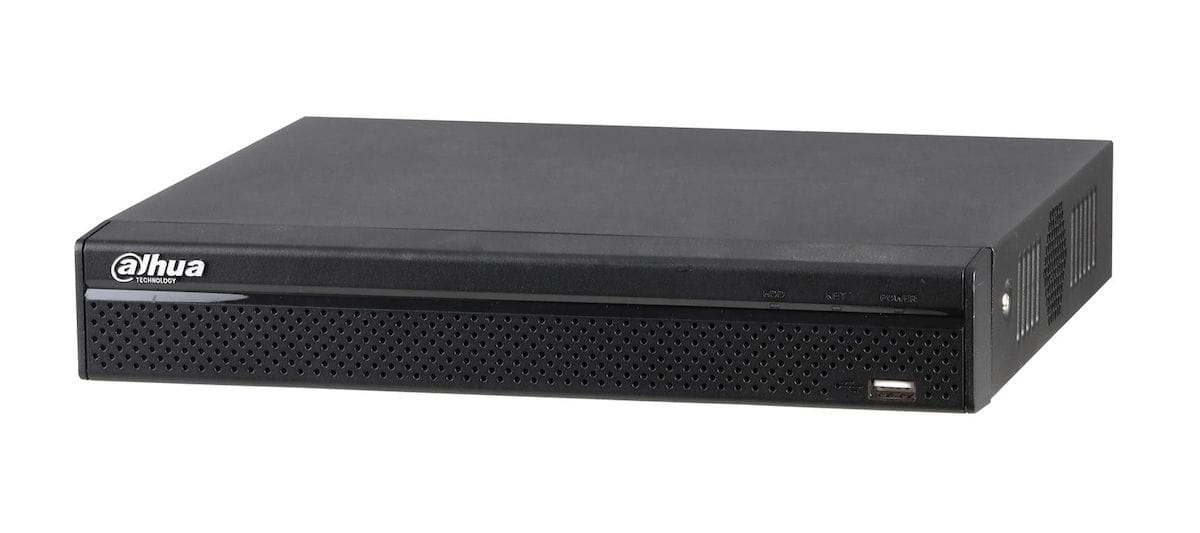

DH-XVR5216AN-I2
16 Channel Penta-brid 5M-N/1080P 1U WizSense Digital Video Recorder

· H.265+/H.265 dual-stream video compression
· Supports HDCVI/AHD/TVI/CVBS/IP video inputs
· Max 24 channels IP camera inputs, each channel up to 6MP; Max
128 Mbps incoming bandwidth
· Perimeter Protection and SMD Plus
· Up to 2 channels video stream (analog channel ) human face recognition
· IoT & POS functionalities
System Overview
Dahua Technology, a world-leading video-centric smart IoT solution and
service provider, debuted its new XVR series, XVR5000-I2 featuring
full-channel SMD Plus (except for 32-channel devices) to benefit
customers from AI upgrade. The series are designated to reduce
false-alarm rates and human surveillance costs, thus bringing great value
to customers in search of products with accurate human/vehicle alarm
to raise the security level of various indoor and outdoor facilities.
Functions
Real Time Face Recognition
Video stream real time face recognition. Facial attributes analysis
features including gender, age, expression, glasses, moustache, mouth
mask. Identify people and also capture, record faces with metadata.
Facial feature filtering while real time display, only show faces with target
features.
*Face Recognition takes effect when Face is selected in AI Mode.
Perimeter Protection
Automatically filtering out false alarms caused by animals, rustling
leaves, bright lights, etc. Enables system to act secondary recognition for
the targets. Improving alarm accuracy.
*Perimeter Protection takes effect when IVS&SMD is selected in AI
Mode.
SMD Plus
SMD Plus, referred to as Smart Motion Detection Plus, which is an
upgrading version of SMD that greatly improves the alarm accuracy by
loading deep-learning algorithm. It analyzes person and vehicle shapes
based on motion detection and send alarms only when person and
vehicle intrudes.
*SMD Plus takes effect when SMD or IVS&SMD is selected in AI Mode.
AI Coding
Compared with H.265, AI codec can reduce up to 50% bit rate and
storage requirements while have no loss of decoding compatibility,
providing clear human and vehicle details.
Smart H.265+
Smart Codec, H.265+ can reduce up to 90% bit rate and storage
requirements compared with H.264 without having to invest in new
cameras.
HDCVI/AHD/TVI/CVBS Auto-detect
The XVR can auto recognize the signal of front-camera without any
setting. It makes operation more friendly and convenient.

High Definition Camera Input
The XVR supports up to 5MP HDCVI camera and 6MP IP camera input.
Coaxial Audio/Upgrade/Alarm
The integrated design can reduce wiring troubles which makes it much
more cost-effective and convenient for installation.
Long Distance Transmission
The HDCVI system supports long distance transmission over coaxial cable
and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for 720P.
AI Search
Extract and classify person and vehicles from massive video data, easy
for end users to trace historical informaton and analyze. Person &
Vehicle optonal for playback to achieve quick target search, saving event
retrieval tme.

Launched by Dahua Technology, WizSense is a series of AI products and
solutions that adopt independent AI chip and deep learning algorithm.
It focuses on human and vehicle with high accuracy, enabling users to
fast act on defined targets. Based on Dahua's advanced technologies,
WizSense provides intelligent, simple and inclusive products and
solutions.
| DH-XVR5216AN-I2


www.dahuasecurity.com

Technical Specification
System
Main ProcessorEmbedded Processor
Operating System
Embedded LINUX
Perimeter Protection
Performance2 channels, 10 IVS for each channel
Object classification
Human/Vehicle secondary recognition for tripwire and
intrusion
AI SearchSearch by target classification (Human, Vehicle)

Face Recognition
Performance
Max 12 face pictures/sec processing
2 channels video stream face recognition, only support
analog camera
Stranger Mode
Detect strangers' faces (not in device's face database).
Similarity threshold can be set manually.
AI Search
Up to 8 target face images search at same time, similarity
threshold can be set for each target face image.
Database Management
Up to 10 face databases with 10,000 face images in
total. Name, gender, birthday, address, certificate type,
cerificate No., countries&regions and state can be added
to each face picture.
Database Application
Each database can be applied to video channels
independently .
Trigger Events
Buzzer, Voice Prompts, Email, Snapshot, Recording,
Alarm Out, PTZ Activation, etc.
SMD Plus
Performance16 channels
AI SearchSearch by target classification (Human, Vehicle)
Video and Audio
Analog Camera Input16 channels, BNC
HDCVI Camera Input
5MP, 4MP, 1080P@25/30fps, 720P@50/60fps,
720P@25/30fps
AHD Camera Input5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
TVI Camera Input5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
CVBS Camera InputPAL/NTSC
IP Camera Input16+8 channels, each channel up to 6MP
Audio In/Out1/1, RCA
Two-way TalkReuse audio in/out, RCA
Recording
CompressionAI Coding/H.265+/H.265/H.264+/H.264
Resolution5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate
Main stream: All channel 5M-N (1fps–10fps);
4M-N/1080P (1fps–15fps); 1080N/720P/960H/
D1/CIF (1fps–25/30fps)
Sub stream: D1/CIF (1fps–15fps)
Bit Rate32 Kbps–6144 Kbps Per Channel
Record Mode
Manual, Schedule (General, Continuous), MD (Video
detection: Motion Detection, Video Loss, Tampering),
Alarm, Stop
Record Interval
1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-
record: 10 s–300 s


Audio CompressionAAC (only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate8 KHz, 16 bit Per Channel
Audio Bit Rate64 Kbps Per Channel
Display
Interface1 HDMI ,1 VGA
Resolution
VGA: 1920 x 1080, 1280 x 1024, 1280 x 720
HDMI: 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x
720
It changes to 1920 x 1080, 1280 x 1024, 1280 x 720
when Face or IVS&SMD is selected in AI Mode.
Multi-screen Display
When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled : 1/4/8/9/16/25
OSD
Camera title, Time, Video loss, Camera lock, Motion
detection, Recording
Network
Interface 1 RJ-45 Port (1000 MB)
Network Function
HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP,
UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,
PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports
Dahua IP camera, DVR, NVS, etc.)
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot,
Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 x 18), Video Loss,
Tampering and Diagnosis
Alarm inputN/A
Relay OutputN/A
Playback and Backup
Playback
1/4/9/16
It changes to 1/4/9 split when Face or IVS&SMD is
selected in AI Mode.
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to
second)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next
File, Previous File, Next Camera, Previous Camera, Full
Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Storage
Internal HDD2 SATA Ports, up to 10TB capacity for each disk
eSATAN/A
Auxiliary Interface
USB2 USB Ports (1 USB 2.0 , 1 USB 3.0)
RS4851 Port, for PTZ Control
RS232N/A
Electrical
Power SupplyDC 12V/4A
Power Consumption
(Without HDD)
<12W

| DH-XVR5216AN-I2

www.dahuasecurity.com

Panels
Construction
Dimensions
1U, 375 mm x 288 mm x 53 mm
(14.76'' x 11.37'' x 2.09'')
Net Weight
(without HDD)
1.8 kg (4.0 lb)
Gross Weight3.1 kg (6.8 lb)
InstallationDesktop installation
Environmental
Operating Conditions-10°C to +55°C (+14°F to +131°F), 0–90% RH
Storage Conditions-20°C to +70°C (-4°F to +158°F) , 0–90% RH
Third-party Support
Third-party Support
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP
Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung,
Sanyo, Sony, Videotec, Vivotek, and more
Certifications
Certifications
FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN
50130, EN 55024

Ordering Information
TypeModel Description
16 Channel
WizSense XVR
DH-XVR5216AN-I2 1U WizSense Digital Video Recorder
Rev 001.001© 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

Dimensions (mm[inch])

1 2
3
4
5
6 7
8
9
10

1
VIDE O IN
6
Ne tw ork Interf ace
2
A UDIO IN, R CA Connec t or
7
R S485 In t erf ace
3
A UDIO OUT , RCA Connec t or
8
DC 12V P o w er Input
4
HDMI Interf ace
9
V GA In t erf ace
5
USB In t erf ace
10
P o w er S wit ch
| DH-XVR5216AN-I2
