XVR5832S-X

Verfügbarkeit: 0
Preis: 1.017,23 € 1017.23
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: DAHUA
Produkt-Code/SKU: XVR5832S-X

Beschreibung

Lite Series | DH-XVR5832S-X    www.dahuasecurity.com    DH-XVR5832S-X  32 Channel Penta-brid 1080P 2U Digital Video Recorder     Series  Lite     Plug&Play  P2P   4K     HDMI     32CH  Smart H.264+    H.265    Long Distance Transmission  The HDCVI system supports long distance transmission over coaxial  cable and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for  720P.  Smart Fan Design  The smart fan can automatically turn on or turn off according to the  CPU temperature. This function can effectively reduce the fan noise to  provide a better user experience.  Spot Output  HDMI2 is made for a secondary monitor. This allows the operator to  view one special monitor that assigned to selected cameras or video  inputs from higher security areas.  Intelligent Video System (IVS)  With built-in intelligent video analytics, the XVR has the ability to detect  and analyze moving objects for improved video surveillance. The XVR  provides optional standard intelligence at the edge allowing detection  of multiple object behaviors such as abandoned or missing objects. IVS  also supports Tripwire analytics, allowing the camera to detect when...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

Lite Series | DH-XVR5832S-X

www.dahuasecurity.com

DH-XVR5832S-X

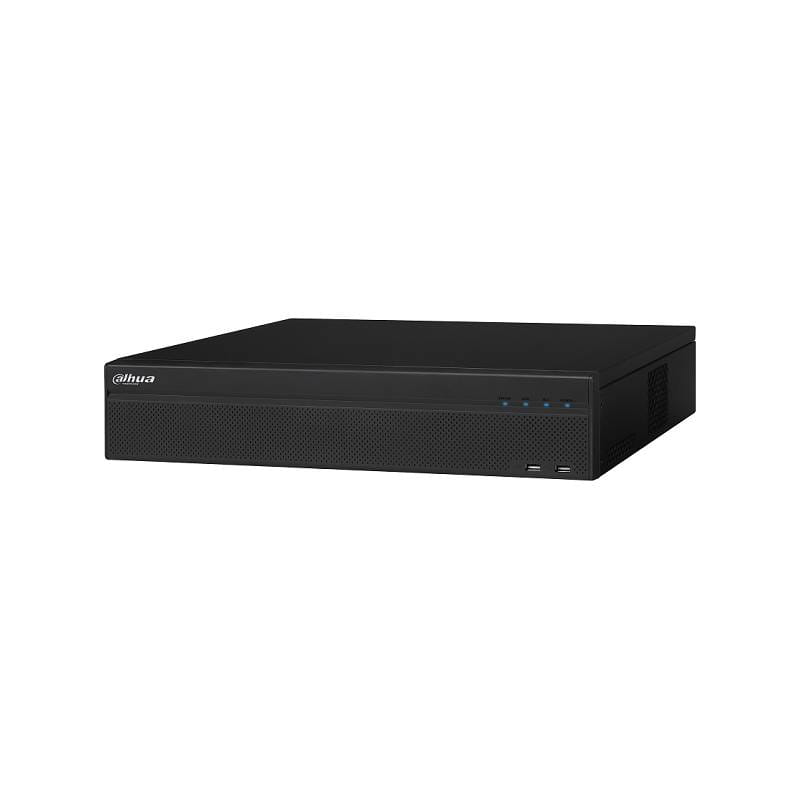

32 Channel Penta-brid 1080P 2U Digital Video Recorder

Series
Lite

Plug&Play
P2P
4K

HDMI

32CH
Smart H.264+

H.265

Long Distance Transmission
The HDCVI system supports long distance transmission over coaxial
cable and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for
720P.
Smart Fan Design
The smart fan can automatically turn on or turn off according to the
CPU temperature. This function can effectively reduce the fan noise to
provide a better user experience.
Spot Output
HDMI2 is made for a secondary monitor. This allows the operator to
view one special monitor that assigned to selected cameras or video
inputs from higher security areas.
Intelligent Video System (IVS)
With built-in intelligent video analytics, the XVR has the ability to detect
and analyze moving objects for improved video surveillance. The XVR
provides optional standard intelligence at the edge allowing detection
of multiple object behaviors such as abandoned or missing objects. IVS
also supports Tripwire analytics, allowing the camera to detect when a
pre-determined line has been crossed.
Face Detection
It is a typical technology being used in a variety of applications for
searching or identification of individuals.
Smart Search
This function helps you get more motion detect video during a short
time through drawing a region when playback. It is very useful when an
emergency occurs.
System Overview
With the surveillance operators pursuing to HD/UHD which further adds
the storage and transmission cost, HDCVI H.265+/H.265 has been released
to incredibly decrease the required bitrate while ensuring the video quality
in realizing high resolution surveillance such as 4MP/4K.
The Lite Series is designed for high cost performance and quality. The range
offers a great solution for users facing budget constraints who both require
quality and performance. And with the adoption of Smart H.265+/H.265,
the series improves encoding efficiency, saving on bandwidth/storage costs,
and significantly reducing the Total Cost of Ownership (TCO).
Functions
Smart H.265+
Smart Codec, H.265+ can reduce up to 90% bit rate and storage
requirements compared with H.264 without having to invest in new
cameras.
HDCVI/AHD/TVI/CVBS Auto-detect
The XVR can auto recognize the signal of front-camera without any setting.
It makes operation more friendly and convenient.

High Definition Camera Input
The XVR supports up to 5MP HDCVI camera and 6MP IP camera input.
Coaxial Audio/Upgrade/Alarm
The integrated design can reduce wiring troubles which makes it much
more cost-effective and convenient for installation.
POS Functionality
This funcion includes POS ticket information overlay and search which can
be widely used in retail programs.

· H.265+/H.265 dual-stream video compression
· Supports HDCVI/AHD/TVI/CVBS/IP video inputs
· Max 32 channels IP camera inputs, each channel up to
8MP; Max 128Mbps incoming bandwidth
· First 16 channels support Tripwire & Intrusion; First 2
channels support Object Abandoned & Missing
· Supports HDMI2 for spot output

www.dahuasecurity.com
Lite Series | DH-XVR5832S-X

Technical Specification
System
Main ProcessorEmbedded Processor
Operating System
Embedded LINUX
Video and Audio
Analog Camera Input32 Channel, BNC
HDCVI Camera 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps
CVBS Camera PAL/NTSC
IP Camera Input32 Channel, each channel up to 8MP
Audio In/Out16/1, BNC
Two-way Talk1 Mic In, 1 Mic Out, BNC
Recording
CompressionH.265+/H.265/H.264+/H.264
Resolution5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate
Main stream:the 1st & 2nd channel 5M-N(1~10fps), others
4M-N/1080P(1~15fps); 1080N/720P/960H/
D1/CIF (1~25/30fps)
Sub steram: D1/CIF(1~15fps)
Bit Rate32Kbps ~ 6144Kbps Per Channel
Record Mode
Manual, Schedule (General, Continuous), MD (Video detection:
Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-
record: 10 ~ 300 sec
Audio CompressionAAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate8KHz, 16 bit Per Channel
Audio Bit Rate64Kbps Per Channel
Display
Interface2 HDMI ,1 VGA, 1 TV
Resolution1920x1080, 1280x1024, 1280x720
Multi-screen Display
HDMI 1:3840x2160, 2560x1440, 1920x1080, 1280x1024,
1280x720
HDMI 2 / VGA: 1920x1080, 1280x1024, 1280x7201920x1080,
1280x1024, 1280x720
OSD
Camera title, Time, Video loss, Camera lock, Motion detection,
Recording
Network
Interface 2 RJ-45 Ports (1000M)
Network Function
HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP,
RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP,
Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR,
NVS, etc.)
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF 16.12, CGI Conformant


Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot,
Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 x 18), Video Loss,
Tampering and Diagnosis
Alarm input16
Relay Output6
Playback and Backup
Playback1/4/9/16
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to
second)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File,
Previous File, Next Camera, Previous Camera, Full Screen,
Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Storage
Internal HDD8 SATA Ports, up to 10TB capacity
eSATA1 Port
Auxiliary Interface
USB2 USB 2.0, 2 USB 3.0
RS2321 port, for PC communication & Keyboard
RS4851 Port, for PTZ Control
RS4221 Port, for PTZ Control
Electrical
Power SupplyAC100V-240V, 50/60Hz
Power Consumption
(Without HDD)
<35W
Construction
Dimensions2U, 440mmx455mmx95mm (17.3" x 17.9" x 3.7")
Net Weight7kg (15.4 lb) (without HDD)
Gross Weight9.8kg (21.6lb)
InstallationDesktop installation/Rack-mounted
Environmental
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Third-party Support
Third-party Support
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP
Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung,
Sanyo, Sony, Videotec, Vivotek, and more
Certifications
Certifications
FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130,
EN 55024
UL: UL 60950-1

Lite Series | DH-XVR5832S-X
Rev 001.001© 2018 Dahua . All rights reserved. Design and specifications are subject to change without notice.

Ordering Information
TypePart NumberDescription
32 Channel XVR DH-XVR5832S-X
32 Channel Penta-brid 1080P 2U Digital
Video Recorder
Dimensions (mm)
www.dahuasecurity.com

DH-XVR5832S-X

7
8
3

4
9

1

2

6

10

11

12

13
14

15

5

Rear Panel

1
VIDEO IN
9
RS232
2
VIDEO OUT
10
VGA port
3
AUDIO IN, BNC Connector
11
2*USB port
4
AUDIO OUT, BNC Connector
12
eSATA port
5
MIC IN, BNC Connector
13
2*HDMI port
6
MIC OUT, BNC Connector
14
Power Input
7
ALARM IN/OUT; RS485;
RS422;
15
Power Switch
8
VGA port
