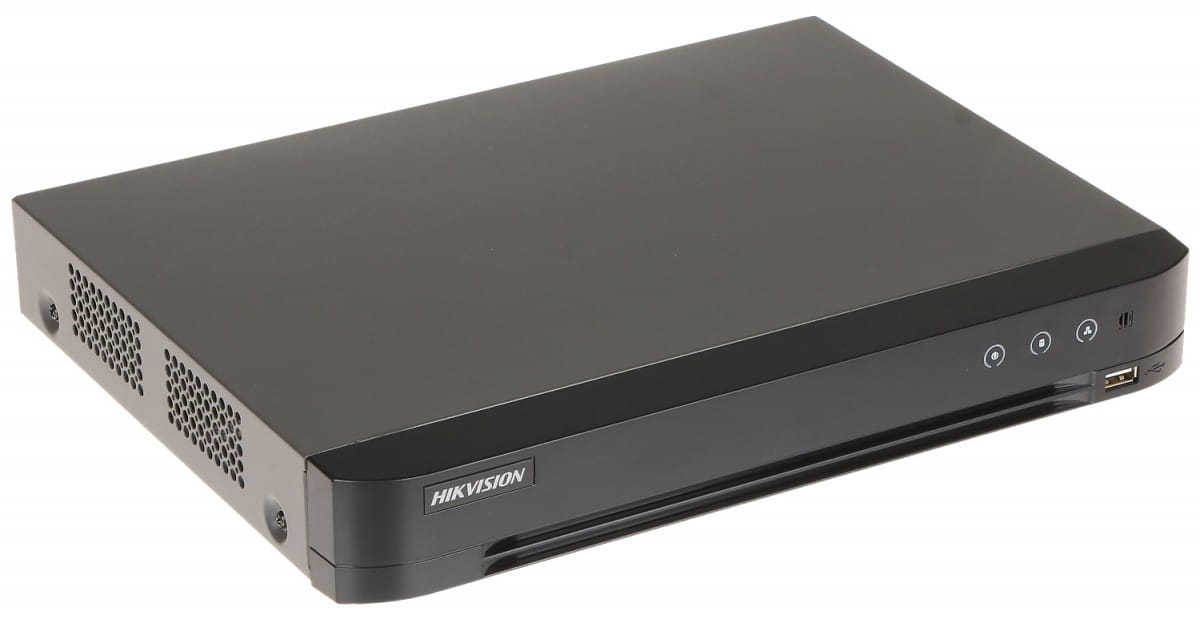

iDS-7208HUHI-M1/S(C)
product unavailable
zur Wunschliste hinzufügenBeschreibung
Key Feature Deep learning-based motion detection 2.0 for all analog channels Deep learning-based perimeter protection H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression HDTVI/AHD/CVI/CVBS/IP video inputs Audio via coaxial cable Up to 8/16-ch IP camera inputs (up to 8 MP) Up to 10 TB capacity per HDD Compression and Recording H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs Recording at up to 8 MP resolution Storage and Playback Smart search for efficient playback Support the third party cloud storage Smart Function Deep learning-based motion detection, and perimeter protection (line crossing and intrusion detection) Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras Network & Ethernet Access Compatible with major Wi-Fi dongle products in the market Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management Output bandwidth limit configurable iDS-7200HUHI-M1/S SERIES TURBO ACUSENSE DVR Specification Model iDS-7204HUHI-M1/S iDS-7208HUHI-M1/S Motion Detectio...
Garantie: 36 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:
Key Feature
Deep learning-based motion detection 2.0 for all analog
channels
Deep learning-based perimeter protection
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 8/16-ch IP camera inputs (up to 8 MP)
Up to 10 TB capacity per HDD
Compression and Recording
H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
Recording at up to 8 MP resolution
Storage and Playback
Smart search for efficient playback
Support the third party cloud storage
Smart Function
Deep learning-based motion detection, and perimeter protection (line crossing and intrusion detection)
Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
Network & Ethernet Access
Compatible with major Wi-Fi dongle products in the market
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
Output bandwidth limit configurable
iDS-7200HUHI-M1/S SERIES
TURBO ACUSENSE DVR
Specification
Model iDS-7204HUHI-M1/S iDS-7208HUHI-M1/S
Motion Detection 2.0¹
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog
channels, it can classify human and vehicle, and extremely reduce false alarms
caused by objects like leaves and lights;
Quick search by object or event type is supported;
Perimeter Protection¹
Human/Vehicle Analysis Up to 4-ch
Recording
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution
Main stream:
8 MP@8 fps/5 MP@12 fps/3K@12
fps/4 MP@15 fps/8 MP Lite@15
fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25
fps (P)/30 fps (N)
*: 8 MP@8 fps is only available for
channel 1, 8 MP Lite is only available
for channel 2 to channel 4.
Main stream:
8 MP@8 fps/5 MP@12 fps/3K@12 fps/
4 MP@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps
(P)/30 fps (N)
Sub-stream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video bitrate 32 Kbps to 10 Mbps
Dual stream Support
Stream type Video, Video & Audio
Audio compression G.711u
Audio bitrate 64 Kbps
Video and Audio
IP video input
2
2-ch (up to 6-ch)
Enhanced IP mode on:
4-ch (up to 8-ch), each up to 4 Mbps
4-ch (up to 12-ch)
Enhanced IP mode on:
8-ch (up to 16-ch), each up to 4 Mbps
Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input
4-ch 8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input
8 MP@15 fps, 5 MP@20 fps, 3K@20
fps, 4 MP@30 fps, 4 MP@25 fps, 3
MP@18 fps, 1080p30, 1080p@25
fps, 720p@60 fps, 720p@50 fps,
720p@30 fps, 720p@25 fps
8 MP@15 fps, 5 MP@20 fps, 3K@20 fps, 4
MP@30 fps, 4 MP@25 fps, 3 MP@18 fps,
1080p@30 fps, 1080p@25 fps, 720p@60
fps, 720p@50 fps, 720p@30 fps,
720p@25 fps
AHD input
5 MP@20 fps, 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps,
720p@25 fps, 720p@30 fps
HDCVI input
5 MP@20 fps , 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps,
720p@25 fps, 720p@30 fps
CVBS input PAL/NTSC
CVBS output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 x 576, NTSC: 704 x 480
VGA output
1-ch, 1920 x 1080/60Hz,
1280 x 1024/60Hz,
1280 x 720/60Hz,
1024 x 768/60Hz
1-ch, 1920 x 1080/60Hz,
1280 x 1024/60Hz,
1280 x 720/60Hz,
1024 x 768/60Hz
HDMI output
1-ch, 2K (2560 x 1440)/60Hz,
1920 x 1080/60Hz,
1280 x 1024/60Hz,
1280 x 720/60Hz,
1024 x 768/60Hz
1-ch, 4K (3840 x 2160)/30Hz,
2K (2560 x 1440)/60Hz,
1920 x 1080/60Hz,
1280 x 1024/60Hz,
1280 x 720/60Hz,
1024 x 768/60Hz
Video output mode HDMI/VGA simultaneous output
Audio input
3
1-ch (up to 4-ch is optional), RCA (2.0
Vp-p, 1 KΩ)
1-ch (up to 8-ch is optional), RCA (2.0 Vp-
p, 1 KΩ)
4-ch via coaxial cable 8-ch via coaxial cable
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Synchronous playback 4-ch 8-ch
Network
Remote connections 32 64
Network protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™,
HTTPS, ONVIF
Network interface
1, RJ45 10/100 Mbps self-adaptive
Ethernet interface
1, RJ45 10/100/1000 Mbps self-adaptive
Ethernet interface
Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary interface
SATA 1 SATA interface
Capacity Up to 10 TB capacity for each disk
Serial interface RS-485 (half-duplex)
USB interface
Front panel: 1 x USB 2.0
Rear panel: 1 x USB 2.0
Front panel: 1 x USB 2.0
Rear panel: 1 x USB 3.0
Alarm in/out
3 N/A (optional to support)
General
Power supply 12 VDC, 1.5 A 12 VDC, 2 A
Consumption
(without HDD)
≤ 10 W ≤ 15 W
Working temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working humidity 10% to 90%
Dimension (W x D x H) 315 x 242 x 45 mm (12.4 x 9.5 x 1.8 inch)
Weight (without HDD) ≤ 1.16 kg (2.6 lb) ≤ 2 kg (4.4 lb)
Note:
1: Motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enable one function will
make the other one unavailable.
2: Enhanced IP mode might be conflicted with smart events (motion detection 2.0 and perimeter protection) or
other functions, please refer to the user manual for details.
3: The number of audio inputs and alarm in/out can be optional. The tag on the package will describe audio input
and alarm in/out parameters. For example, “4A+8/4ALM” means your device has 4 audio inputs, 8 alarm inputs and
4 alarm outputs. If your device only has 1 audio input, the tag may not describe it.
*: The rear panel of iDS-7204HUHI-M1/S provides 4 video input interfaces.
Physical Interface
No. Description No. Description
1 VIDEO IN 7 AUDIO IN, RCA connector
2 USB interface 8 LAN network interface
3 VIDEO OUT 9 RS-485 serial interface
4 HDMI interface 10 12 VDC power input
5 VGA interface 11 GND
6 AUDIO OUT, RCA connector
Available Model
iDS-7204HUHI-M1/S, iDS-7208HUHI-M1/S
