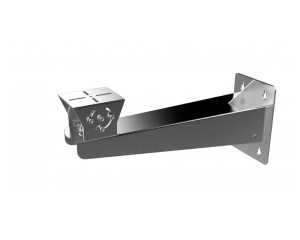

DS-1707ZJ
DS-1707ZJ Wall Mount Features Adopts the stainless steel structure Applied to both indoor conditions, and outdoor conditions Dimension 4-Φ 13 mm (0.51'')* 118 mm ± 0.1 mm (* 4.65'' ± 0.004'') 180 mm (7.09'') * 290 mm ± 0 .1 mm (* 11 .42 '' ± 0 .004 '' ) 332 mm (13 .07 '' ) 562.5 mm (22.15'') 309 mm (12 .17 '' ) Φ 6.5 mm (0.26'') 96 mm (3.78'') 30 mm (1.18'') 6.5 mm (0.26'') 6 .5 mm (0 .26 '') 30 mm (1 .18 '') 80 mm (3 .15 '') 105 .5 mm (4 .15 '') Available Model DS-1707ZJ Parameter Model Parameters DS-1707ZJ Wall Mount Appearance Unpainted Stainless Steel Material SUS304 Dimension 562.5 mm x 180 mm x 309 mm (22.15" x 7.09" x 12.17") Weight 7.02 kg (15.48 lb.) Notes The mount should be installed on the flat surface. Waterproof rubber is necessary for the outdoor application. The wall should be capable of supporting at least 3 times as much as the total weight of the camera, and the mount...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0

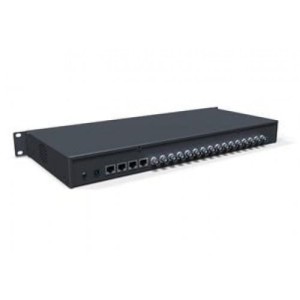

DS-1H05-16R
Overview DS-1H05 series product adopts security link over coax technology, achieve transmitting analog/IP signal in coaxial cable. Key Features Max transmission distance is 500 meters. DS-1H05-T/E transmitter support PoE(802.3af) function. Industrial design, high reliability. Application Specification DS-1H05 Series Coaxial Transmission Accessary Model DS-1H05-T DS-1H05-T/E DS-1H05-R DS-1H05-4R/8R/16R DS-1H05-R-8 Input 1 RJ45,1 BNC 1 BNC 4/8/16 BNC 8 BNC Output 1 BNC 1 RJ45, 1 BNC 2/2/4 RJ45 1 RJ45 PoE Only DS-1H05-T/E support N/A N/A N/A Consumption DS-1H05-T≤5W DS-1H05-T/E≤20W (Include PoE power supply) ≤5W DS-1H05-4R≤10W DS-1H05-8R≤15W DS-1H05-16R≤24W ≤20W Working Humidity 10 ~ 90% Working Temperature -10°C ~ 55°C Power DC12V 220V AC Dimension (W x H x D) Standalone Transmitter and Receiver: 80x27x96 mm Multi-channel Receiver: 440x44.5x195mm Rack-mounted Receiver Chassis: 482.6x265.9x279.3 mm...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0

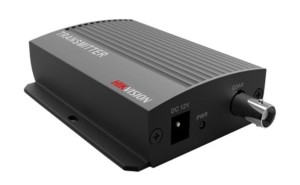

DS-1H05-4R
Overview DS-1H05 series product adopts security link over coax technology, achieve transmitting analog/IP signal in coaxial cable. Key Features Max transmission distance is 500 meters. DS-1H05-T/E transmitter support PoE(802.3af) function. Industrial design, high reliability. Application Specification DS-1H05 Series Coaxial Transmission Accessary Model DS-1H05-T DS-1H05-T/E DS-1H05-R DS-1H05-4R/8R/16R DS-1H05-R-8 Input 1 RJ45,1 BNC 1 BNC 4/8/16 BNC 8 BNC Output 1 BNC 1 RJ45, 1 BNC 2/2/4 RJ45 1 RJ45 PoE Only DS-1H05-T/E support N/A N/A N/A Consumption DS-1H05-T≤5W DS-1H05-T/E≤20W (Include PoE power supply) ≤5W DS-1H05-4R≤10W DS-1H05-8R≤15W DS-1H05-16R≤24W ≤20W Working Humidity 10 ~ 90% Working Temperature -10°C ~ 55°C Power DC12V 220V AC Dimension (W x H x D) Standalone Transmitter and Receiver: 80x27x96 mm Multi-channel Receiver: 440x44.5x195mm Rack-mounted Receiver Chassis: 482.6x265.9x279.3 mm...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0

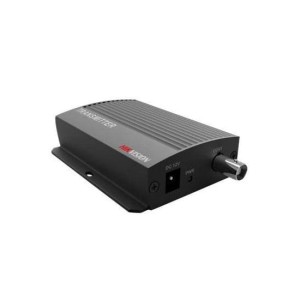

DS-1H05-8R
Overview DS-1H05 series product adopts security link over coax technology, achieve transmitting analog/IP signal in coaxial cable. Key Features Max transmission distance is 500 meters. DS-1H05-T/E transmitter support PoE(802.3af) function. Industrial design, high reliability. Application Specification DS-1H05 Series Coaxial Transmission Accessary Model DS-1H05-T DS-1H05-T/E DS-1H05-R DS-1H05-4R/8R/16R DS-1H05-R-8 Input 1 RJ45,1 BNC 1 BNC 4/8/16 BNC 8 BNC Output 1 BNC 1 RJ45, 1 BNC 2/2/4 RJ45 1 RJ45 PoE Only DS-1H05-T/E support N/A N/A N/A Consumption DS-1H05-T≤5W DS-1H05-T/E≤20W (Include PoE power supply) ≤5W DS-1H05-4R≤10W DS-1H05-8R≤15W DS-1H05-16R≤24W ≤20W Working Humidity 10 ~ 90% Working Temperature -10°C ~ 55°C Power DC12V 220V AC Dimension (W x H x D) Standalone Transmitter and Receiver: 80x27x96 mm Multi-channel Receiver: 440x44.5x195mm Rack-mounted Receiver Chassis: 482.6x265.9x279.3 mm...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0

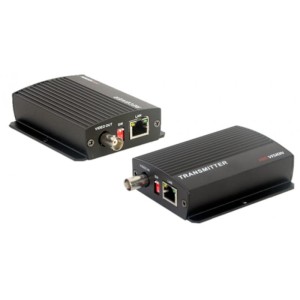

DS-1H05-R
Overview DS-1H05 series product adopts security link over coax technology, achieve transmitting analog/IP signal in coaxial cable. Key Features Max transmission distance is 500 meters. DS-1H05-T/E transmitter support PoE(802.3af) function. Industrial design, high reliability. Application Specification DS-1H05 Series Coaxial Transmission Accessary Model DS-1H05-T DS-1H05-T/E DS-1H05-R DS-1H05-4R/8R/16R DS-1H05-R-8 Input 1 RJ45,1 BNC 1 BNC 4/8/16 BNC 8 BNC Output 1 BNC 1 RJ45, 1 BNC 2/2/4 RJ45 1 RJ45 PoE Only DS-1H05-T/E support N/A N/A N/A Consumption DS-1H05-T≤5W DS-1H05-T/E≤20W (Include PoE power supply) ≤5W DS-1H05-4R≤10W DS-1H05-8R≤15W DS-1H05-16R≤24W ≤20W Working Humidity 10 ~ 90% Working Temperature -10°C ~ 55°C Power DC12V 220V AC Dimension (W x H x D) Standalone Transmitter and Receiver: 80x27x96 mm Multi-channel Receiver: 440x44.5x195mm Rack-mounted Receiver Chassis: 482.6x265.9x279.3 mm...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
DS-1H05-T
Overview DS-1H05 series product adopts security link over coax technology, achieve transmitting analog/IP signal in coaxial cable. Key Features Max transmission distance is 500 meters. DS-1H05-T/E transmitter support PoE(802.3af) function. Industrial design, high reliability. Application Specification DS-1H05 Series Coaxial Transmission Accessary Model DS-1H05-T DS-1H05-T/E DS-1H05-R DS-1H05-4R/8R/16R DS-1H05-R-8 Input 1 RJ45,1 BNC 1 BNC 4/8/16 BNC 8 BNC Output 1 BNC 1 RJ45, 1 BNC 2/2/4 RJ45 1 RJ45 PoE Only DS-1H05-T/E support N/A N/A N/A Consumption DS-1H05-T≤5W DS-1H05-T/E≤20W (Include PoE power supply) ≤5W DS-1H05-4R≤10W DS-1H05-8R≤15W DS-1H05-16R≤24W ≤20W Working Humidity 10 ~ 90% Working Temperature -10°C ~ 55°C Power DC12V 220V AC Dimension (W x H x D) Standalone Transmitter and Receiver: 80x27x96 mm Multi-channel Receiver: 440x44.5x195mm Rack-mounted Receiver Chassis: 482.6x265.9x279.3 mm...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0

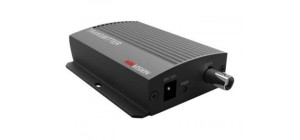

DS-1H05-T/E
Overview DS-1H05 series product adopts security link over coax technology, achieve transmitting analog/IP signal in coaxial cable. Key Features Max transmission distance is 500 meters. DS-1H05-T/E transmitter support PoE(802.3af) function. Industrial design, high reliability. Application Specification DS-1H05 Series Coaxial Transmission Accessary Model DS-1H05-T DS-1H05-T/E DS-1H05-R DS-1H05-4R/8R/16R DS-1H05-R-8 Input 1 RJ45,1 BNC 1 BNC 4/8/16 BNC 8 BNC Output 1 BNC 1 RJ45, 1 BNC 2/2/4 RJ45 1 RJ45 PoE Only DS-1H05-T/E support N/A N/A N/A Consumption DS-1H05-T≤5W DS-1H05-T/E≤20W (Include PoE power supply) ≤5W DS-1H05-4R≤10W DS-1H05-8R≤15W DS-1H05-16R≤24W ≤20W Working Humidity 10 ~ 90% Working Temperature -10°C ~ 55°C Power DC12V 220V AC Dimension (W x H x D) Standalone Transmitter and Receiver: 80x27x96 mm Multi-channel Receiver: 440x44.5x195mm Rack-mounted Receiver Chassis: 482.6x265.9x279.3 mm...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0

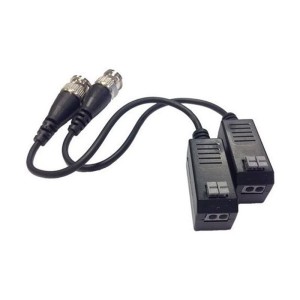

DS-1H18S
DS-1H18 Series TVI Transmission Overview DS -1H18 is a passive high definition transmitter, small size and easy installation, transmission distance of color signal up to 200m, it is very suitable for middle distance video surveillance, such as office building, community, school and hospital etc. Available Models DS -1H18 Product Terminal and Dimension Introduction (1): VIDEO IN (2): VIDEO +(UTP Cable) (3): VIDEO - (UTP Cable) Product Installation Instructions ◆ Connect the video signal to BNC terminal of transmitter. ◆ Selected a pair of UTP Cable (must be same color) connect to the transmitter VIDEO +/- port and receiver VIDEO +/- port ◆ Connect the video signal of receiver to display device. Specifications Bandwidth DC0 to 60MHz Impedance 75 to 100 Differential Gain < 2% Differential Phase < 2 Connectors BNC to Spring compression wire terminals Temperature...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
DS-1H18S/E
DS-1H18 Series TVI Transmission Overview DS -1H18 is a passive high definition transmitter, small size and easy installation, transmission distance of color signal up to 200m, it is very suitable for middle distance video surveillance, such as office building, community, school and hospital etc. Available Models DS -1H18 Product Terminal and Dimension Introduction (1): VIDEO IN (2): VIDEO +(UTP Cable) (3): VIDEO - (UTP Cable) Product Installation Instructions ◆ Connect the video signal to BNC terminal of transmitter. ◆ Selected a pair of UTP Cable (must be same color) connect to the transmitter VIDEO +/- port and receiver VIDEO +/- port ◆ Connect the video signal of receiver to display device. Specifications Bandwidth DC0 to 60MHz Impedance 75 to 100 Differential Gain < 2% Differential Phase < 2 Connectors BNC to Spring compression wire terminals Temperature...
Warnung! Produkt aus der Produktion genommen!
Ersatzprodukt: DS-1H18S/E(B)
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
DS-1H18S/E(B)
DS-1H18S/E(B) HD Video Balun Real-time transmission over UTP cat5e/6 Compatible with all HD-TVI/CVI/AHD/CVBS analog camera Low crosstalk and noise suppressions Male BNC connector Built-in solid state TVS (Transient Voltage Suppressor) for surge protection Wave Filter Design, Anti-Static Design Power and video signals transmit over one twist pair cable 60 dB crosstalk and noise immunity Exceptional interference rejection ABS engineering plastic housing Compatible with HD-TVI, HD-CVI, AHD and CVBS Features and Functions The DS-1H18S/E(B) video balun is a passive device that allows the transmission of real-time CCTV HD video signal and power via cost-effective Unshielded Twisted Paired (UTP) cable Model DS-1H18S/E(B) Transmission Signal 1 channel Category Type UTP CAT 5E/ 6 (R<100Ω/100M) Coaxial Video Connector BNC-M Twisted-pair Video Connector Tool-less push-pin terminal block Compatible Format HD-TVI/CVI/AHD/CVBS Resolution 720P/960P/1080P/3MP/4MP/5MP/8MP Ant-interference >60db 1a contact discharge electricity level3 1b air discharge electricity level3 Per: IEC61000-4...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0

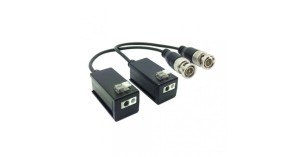

DS-1H18S/E-E
DS-1H18S/E-E HD Video Balun Screw interface with cable and without cable Mini size for easy installation ABS outer shell for convenient to use in intensive project No power required, and simplified project wiring Plug and play, real-time transmit CCTV HD video signal, and high quality and stable video Compatible with HDTVI/HDCVI/AHD Transmission distance: non-POC Camera: Max. 200m. Superior anti-interference and lighting protection and ESD Features and Functions Model DS-1H18S/E-E Properties Transmission Signal 1 channel Transmission Distance Non-POC Camera: Max 200m Category Type UTP CAT 5E/ 6 (R<100Ω/100M) Video Transmission Properties and Port Coaxial Video Connector BNC-M Twisted-pair Video Connector Screw Interface Compatible Format HDTVI/HDCVI/AHD Resolution 720P/1080P/3MP/4MP/5MP Ant-interference >60db Protection ESD 1a contact discharge electricity level3 1b air discharge electricity level3 Per: IEC61000-4-2 Coaxial Cable Connector 2KV(common-code) Per:IEC61000-4-5 UTP Cable Connector 2KV(different-code), ...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0

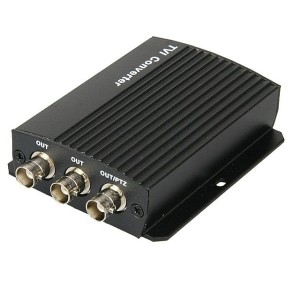

DS-1H31
DS-1H31 HDTVI Distributor Overview HD-DS-1H31 Series HDTVI Distributor can distribute the inputting 1-ch HDTVI video signal to 3-ch, outputs the 3-ch signal in parallel, supports 1-ch coaxitron output, and realizes that multiple HDTVI receiving devices are able to share the same signal source. Available Models DS-1H31 HDTVI distributor Features Distributes the inputting 1-ch HDTVI video signal to 3-ch signal output. Connectable to terminal devices such as HDTVI DVR and matrix. Supports all the HDTVI standards, including V2.0 video standard signal. Supports 1-ch coaxitron output. Lossless and uncompressed transmission. Satisfies the requirements of working in high or low temperature. Up to 100000 hours of mean time between failures. Physical Interfaces Front panel: Index Name 1 12VDC Power Supply 2 1-ch HDTVI video input 3 Video Source LED Indicator 4 Power LED Rear panel: Index Name 1 BNC Interface 2 BNC Interface 3 BNC Interface Specif...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0

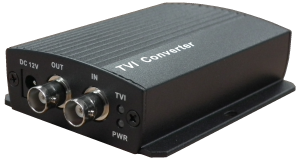

DS-1H33
DS -1H 33 HDTVI Converter Overview DS -1H33 HDTVI converter can convert the input HDTVI signal to the output HDMI signal, supports all the video resolution of HD TVI, and supports 1-ch HD TVI loop out. Available Model s DS -1H33 HD TVI Converter Features 1-ch HDTVI input, 1-ch HDTVI loop out and 1-ch HDMI output. Support s all the standards of HDTVI, including V2.0 video standard signal. Convert s HDTVI video signal effectively. Lossless and uncompressed transmission. Satisf ies the requirements of working in high or low temperature. Up to 100000 hours of mean time between failures. Physical Interfaces Front panel: Index Name 1 12VDC Power Supply 2 BNC Interface 3 BNC Interface 4 Video Source LED 5 Power LED Rear panel: Index Name 1 HDMI Interface Turbo TVI in, HDMI output Lo-Call 1890 866 900 www.cctvireland.ie shop@cctvireland.ie Specifications Model ...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0

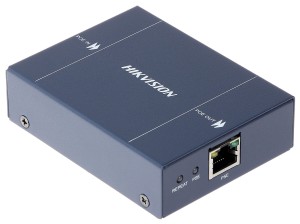

DS-1H34-0101P
DS-1H34 Series PoE Video Repeater Support 1-ch input and 1-ch output, and 1-ch input and 2-ch output PoE relay function. Support EXTEND mode of PSE (Power Sourcing Equipment) output interface. The transmission distance of single-stage network can be extended to 250 meters when the EXTEND mode is enabled. Standard Cat. 5e twisted pair. For 100 Mbps mode, the repeater supports 4-stage cascade and the max. transmission distance reaches 500 meters (terminal power consumption < 5W). For EXTEND mode, the max. transmission distance reaches 500 meters (terminal power consumption < 5W). IEEE802.3at and IEEE802.3af are supported for PoE output. 10/100BaseT(X) (RJ45 interface). IEEE802.3, IEEE802.3u and IEEE802.3x network standards available. Store-and-forward switching method. The time delay of data exchange is shorter than 5 microseconds. The working temperature range for wide temperature range models is within -30˚C to 70˚C. Solid metal case of high strength. Features and Functions Model DS-1H34-0101P DS-1H34-0102P Input 1-ch 10/100BaseT(X) and IEEE 802.3at standard of PD connection. Output 1-ch 10...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
DS-1LN6-UU/W
HIKVISION TECHNICAL DATA SHEET Form Edition：A/1 1 of 1 Effective Date of Form：2012-12-27 U/UTP 4Pairs cable-category 6- PVC Sheath P/N: HK-1191-C6-001-01 Content of the Data Sheet Sheath Printing HIKVISION E484059-Z (UL) CM 4PR 23AWG 75℃ U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Customer Reference Category U/UTP CAT6-4P-PVC-CM Test Standard ISO/IEC11801、TIA-568-C.2 、YD/T1019 Conductor Material SOLID-Bare Copper Nom.O.D.(mm) 0.565 up +0.005 down -0.005 Insulation Material HDPE Diameter 1.02±0.03mm Sheath Thickness 0.55±0.05 mm Technical Performance (100m): Frequency RL ATT(20℃) NEXT PHASE DELAY (MHz) ≥dB ≤dB ≥dB ≤ns 1 20.0 2.03 74.3 570.00 4.0 23.0 3.78 65.3 552.00 8.0 24.5 5.32 60.8 546.73 10.0 25.0 5.95 59.3 545.38 16.0 25.0 7.55 56.2 543.00 20.0 25.0 8.47 54.8 542.05 25.0 24.3 9.51 53.3 5...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0

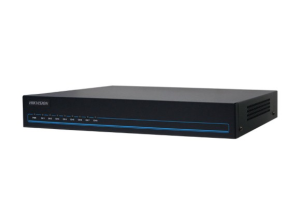

DS-1TP04I: 4-ch PoC Unit
DS-1TP00I Series Coaxial Power Unit Overview DS-1TP00I Series Coaxial Power Unit powers the POC (Power over Coaxial) camera via coaxial cable. It is widely applied in video surveillance systems in financial industry, public security, military, telecommunication, transportation, education, etc. Model DS-1TP04I DS-1TP08I Key Features Transmits analog video signals from POC camera Powers POC camera Physical Interface DS-1TP08I Rear Panel DS-1TP04I provides 4-ch video inputs and outputs. Typical Application TVI (POC) TVI (POC) TVI (POC) TVI (POC) POC Camera Coaxial Cable Coaxial Power Unit CAMERA 2 CAMERA 1 CAMERA 3 CAMERA 4 DVR DVR 1 DVR 2 DVR 3 DVR 4 Specifications Model DS-1TP04I DS-1TP08I Video Input Video Input 4-ch 8-ch Interface Type BNC Interfaces for connecting to POC camera Power Supply Distance 400m 75-5, 200m 75-3 Maximum Power 8 W POC Camera Only support Hikvision POC camera TVI Camera Unsupported CVBS Camera Unsupported Video Output Video Output 4-ch 8-ch Interface Type BNC inter...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
DS-1TP08I: 8-ch PoC Unit
DS-1TP00I Series Coaxial Power Unit Overview DS-1TP00I Series Coaxial Power Unit powers the POC (Power over Coaxial) camera via coaxial cable. It is widely applied in video surveillance systems in financial industry, public security, military, telecommunication, transportation, education, etc. Model DS-1TP04I DS-1TP08I Key Features Transmits analog video signals from POC camera Powers POC camera Physical Interface DS-1TP08I Rear Panel DS-1TP04I provides 4-ch video inputs and outputs. Typical Application TVI (POC) TVI (POC) TVI (POC) TVI (POC) POC Camera Coaxial Cable Coaxial Power Unit CAMERA 2 CAMERA 1 CAMERA 3 CAMERA 4 DVR DVR 1 DVR 2 DVR 3 DVR 4 Specifications Model DS-1TP04I DS-1TP08I Video Input Video Input 4-ch 8-ch Interface Type BNC Interfaces for connecting to POC camera Power Supply Distance 400m 75-5, 200m 75-3 Maximum Power 8 W POC Camera Only support Hikvision POC camera TVI Camera Unsupported CVBS Camera Unsupported Video Output Video Output 4-ch 8-ch Interface Type BNC inter...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0

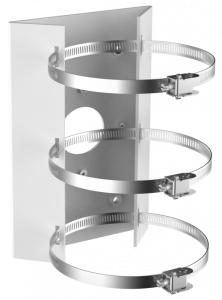

DS-2904ZJ
DS-2904ZJ Vertical Pole Mount Feature ⚫ Suit for different size of poles ⚫ With high reliability and flexibility ⚫ Applied to both indoor and outdoor conditions Dimension 12 77 .8 mm (3 .06 '') 157 mm (6.18'') 240 mm (9 .45 '') Available Model DS-2904ZJ Parameter Model Parameters DS-2904ZJ Vertical Pole Mount Appearance Hikvision White Material Q235, SUS304 Dimension 240 mm x 157 mm x 43 mm (9.45" x 6.18" x 1.69") Weight Approx. 1600 g (3.53 lb.) Note ⚫ The pole should be capable of supporting at least 3 times as much as the total weight of the camera and the mount. ⚫ The maximum load capacity of the mount is 10 kg (22.05 lb.)....
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
