Eingestellte Produkte - EOL

DS-KAB11-D  Protective Shield    Features and Notes   Stainless steel material   Convenient design available for the wall mounting of  the villa door station (DS-KD8002-VM)   No insulation    Available Model  DS-KAB11-D    Specifications  Parameter Model DS-KAB11-D  Material Stainless Steel  Working temperature -40° C to +70° C (-40° F to 158° F)  Working humidity 10% to 90%  Dimension (L x W x H) 424 mm x 149 mm x 98 mm (16.69" x 5.87" x 3.86")    Dimension            Front View Slide View Rear View              Installation                      20161221...

Warnung! Produkt aus der Produktion genommen!

Garantie: 24 mon.

Datentabelle

DS-KAB118  Gang Box            Features and Notes   Convenient design available for indoor station wall mounting   Made of the insulating material    Available Model  DS-KAB118    Specifications  Parameter Model DS-KAB118  Material PVC  Color Black  Working temperature -5° C to +60° C (23° F to 140° F)  Working humidity 10% to 90%  Dimension (L x W x H) 102.9 mm x 66.6 mm x 50 mm (0.34" x 0.22" x 0.16")    Dimension                            Installation          0100001061102  20170228 (Draft)...

Warnung! Produkt aus der Produktion genommen!

Garantie: 24 mon.

Datentabelle

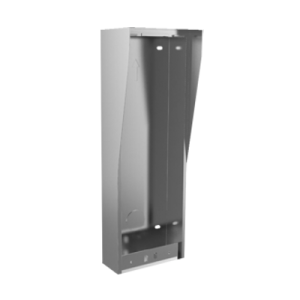

DS-KAB13-D  Protective Shield    Features and Notes   Stainless steel material   Convenient design available for the wall mounting of  the door station (DS-KD3002-VM)   No insulation    Available Model  DS-KAB13-D    Specifications  Parameter Model DS-KAB13-D  Material Stainless Steel  Working temperature -40° C to +70° C (-40° F to 158° F)  Working humidity 10% to 90%  Dimension (L x W x H) 360 mm x 128 mm x 86 mm (14.17" x 5.04" x 3.39")    Dimension      Front View Slide View Rear View                Installation...

Warnung! Produkt aus der Produktion genommen!

Garantie: 24 mon.

Datentabelle

DS-KAB21-H  Indoor Station Table Stand    Features and Notes   Fashionable metal bracket   Convenient design available for indoor station   Stable and solid      Available Model  DS-KAB21-H    Specifications  Parameter Model DS-KAB21-H  Material Stainless Steel  Working temperature -10° C to + 55° C (14° F to 131° F)  Working humidity 10% to 90%  Dimension (L x W x H) 131 mm x 102 mm x 100 mm...

Warnung! Produkt aus der Produktion genommen!

Garantie: 24 mon.

Datentabelle

DS-KABD9613-G  Junction Box    Key Feature  * Contains installation accessories of DS-KD9613 series door  stations, including junction box, screws, etc.  * Material of the junction box: SECC  * Supports flush mounting with junction box  Specification  Parameters  Material SECC  Working  temperature  -40° C to +60° C(-40° F to 140° F)  Working  humidity  10% to 95%  Dimension  404.3 x 169.8 x 40 mm (15.92" x 6.69" x  1.57")  Available Model  DS-KABD9613-G            Dimension...

Warnung! Produkt aus der Produktion genommen!

Garantie: 24 mon.

Datentabelle

DS-KAD606 is an integrated Video/Audio distributor  supporting network cable power supply. It has a  built-in voltage-stabilized power and eight 10/100M  LAN interfaces, six of which support powering  through network cables. It is suitable for internet  connection of all-digital video intercom in residence  communities.          DS-KAD606         Built-in 24V DC voltage-stabilized switching mode power supply   Eight RJ45 interfaces, including six adaptive 10/100M LAN interfaces supporting network cable  powering and two adaptive 10/100M cascading LAN interfaces   IEEE802.3, IEEE802.3u, IEEE802.3x   Storing and forwarding function   VLAN technique   Over 1000,000h mean time between failure   Operating temperature range: from -30° C to 70° C   Suitable for wall mounting    Video/Audio Distributor    MAIN FEATURES    DS-KAD606    AVAILABLE MODELS      Spec of DS-KAD606 Video/Audio Distributor www.hikvision.com  2                            Model  Parameters  DS-KAD606  Network  Parameters

Warnung! Produkt aus der Produktion genommen!

Garantie: 24 mon.

Datentabelle

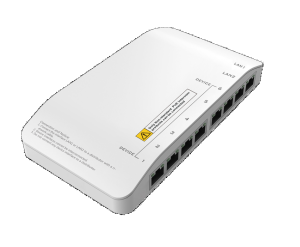

DS-KAD606-N  Video/Audio Distributor    Key Features   8 RJ-45 interfaces, including 6 adaptive 10/100 Mbps LAN interfaces  supporting network cable powering and 2 adaptive 10/100 Mbps cascading LAN  interfaces   Up to 8 distributors can be cascaded   6 adaptive 10/100 Mbps LAN interfaces supports providing 24 VDC for video  intercom devices (* The power adapter is not included in the package.)   IEEE802.3, IEEE802.3u, IEEE802.3x   Storing and forwarding function    Typical Application  Client Software  Center Master Station  (Master Station)  Network Cable  Door Station  Resident 2      IPC   Master Station  in Guard's Room  Outer Door Station  Resident 2      RS-485  Resident 1  Resident 1  Video/Audio  Distributor      Card  Reader    Card  Reader    1F      Resident 2  Resident 1    Resident 2  Resident 1    Building  2F  3F  4F  Video/Audio  Distributor   LAN                        Model DS-KAD606-N  Network  parameters  Interface number Eight 10/100 Mbps Interfaces  Interface type RJ-45, Full/Half-Duplex, MDI/MDI-X Self...

Warnung! Produkt aus der Produktion genommen!

Garantie: 24 mon.

Datentabelle

All IP Video Intercom Master Station  DS-KAD612 is an integratedvideo/audiodistributor  supportingnetworkcable power supply.It has a  built-in voltage-stabilized power and  sixteen10M/100M LAN interfaces, twelve of which  support powering through network cables. It is  suitable for internet connection ofall-digital  videointercom in residence communities.          DS-KAD612         Built-in 24V DC voltage-stabilized switching mode power supply   Sixteen RJ45 interfaces, including twelve adaptive 10M/100M LAN interfaces supporting  network cable powering and fouradaptive 10M/100M cascading LAN interfaces   IEEE802.3, IEEE802.3u, IEEE802.3x   Storing and forwardingfunction   VLAN technique   Over 1000,000 h mean time between failure   Operating temperature range: from-30°C to 70°C   Suitable for wall mounting    Video/Audio Distributor  MAIN FEATURES  DS-KAD612  AVAILABLE MODELS      Spec of DS-KAD612 Video/Audio Distributor www.hikvision.com  2                  Model  Parameters  DS-KAD612    Network  Parameters  Interface Number Sixteen 10M/100M Interfaces  Interface Type  RJ45...

Warnung! Produkt aus der Produktion genommen!

Garantie: 24 mon.

Datentabelle

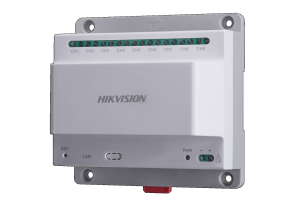

DS-KAD709  Two-Wire Controller  Key Features   Supports 100-meter transmission (18 AG/17 WAG)   Supports 30-meter transmission (20 WAG)   Supports providing power supply for 1 door station and 1 indoor stations  simultaneously      Typical Application    Indoor Station 1  Indoor Station2  Indoor Station3  Indoor Station4Door Station  Controller      Draft                Model DS-KAD609-E  General  Power supply 24 VDC  Power consumption 60 W  Interface  1 RJ-45 Interface  8 Two-Wire Interfaces  Working  temperature -10° C to +55° C (14° F to 131° F)  Working humidity 10% to 90%  Installation Wall Mounting  Dimensions 110.2*107.6*66（mm）                                                        Index Description Index Description  1 Reset Button 4 1 RJ-45 Interface  2 Power Indicator 5 Power Supply Interface  3 9 Two-Wire Interface  Specifications  Appearance          Draft              0100001070511      Draft...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-KAD706

Ersatzproduktcode: 305301460

Garantie: 24 mon.

Datentabelle

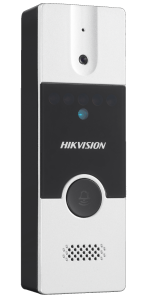

DS-KB2411-IM  Video Intercom Door Station    Key Features   Hands-free video intercom communication   Supports two door stations in the intercom system   Self-adaptive IR supplement (with photoresistor)   One-touch calling   Pinhole camera with 720 x 576 @ 25 fps   Unlock controlling   Anti-oxidant aluminium alloy   Wall mounting supported   Convenient installation with/without the junction box  Typical Application        Door Station  Indoor Station 2  Indoor Station 3  Indoor Station 1  Analog Camera 3  Analog Camera 2  Analog Camera 1    Electric Lock  Four-Core Cable    Block to BNC Cable  Electric Lock  Connection Cable                  Model DS-KB2411-IM  Video  parameters  Camera 1/4" CMOS  Resolution 720 x 576  Video frame rate PAL: 25 fps  Audio  parameters  Audio input Built-in Omnidirectional Microphone  Audio output Built-in Loudspeaker  Audio quality Noise Suppression and Echo Cancellation  Light  supplement  Light supplement  mode  Photosensitive IR Supplement, IR Range: 2 Meters  Device  interfaces  Four-wire interface  1 Four-Wire Interface...

Warnung! Produkt aus der Produktion genommen!

Garantie: 24 mon.

Datentabelle

 Hands-free video intercom communication   Supports two door stations in the intercom system   Self-adaptive IR supplement (with photoresistor)   One-touch calling   Pinhole camera with 720 x 576 @ 25 fps   Unlock controlling   Anti-oxidant zinc alloy   Vandal-resistant   Convenient installation   IP65       防爆等级      DS-KB2421-IM  Video Intercom Door Station    Key Features  Typical Application        Door Station  Indoor Station 2  Indoor Station 3  Indoor Station 1  Analog Camera 3  Analog Camera 2  Analog Camera 1  Electric Lock  Four-Core Cable    Block to BNC Cable  Electric Lock  Connection Cable                  Model DS-KB2421-IM  Video  parameters  Camera 1/4" CMOS  Resolution 720 x 576  Video frame rate PAL: 25 fps  Audio  parameters  Audio input Built-in Omnidirectional Microphone  Audio output Built-in Loudspeaker  Audio quality Noise Suppression  Light  supplement  Light supplement  mode  Photosensitive IR Supplement, IR Range: 2 Meters  Device  interfaces  Four-wire interface  1 Four-Wire Interface (1-ch Video Input,...

Warnung! Produkt aus der Produktion genommen!

Garantie: 24 mon.

Datentabelle

DS-KB6003-WIP  Wi-Fi Doorbell    Key Features  Basic Functions   Video intercom function, supporting the audiovisual communication  with the mobile App directly   Self-adaptive IR supplement with max. 5-meter IR distance   High-performance embedded SOC processor   IP 54 standard  Video/Audio Functions   HD video surveillance with ultra-wide angle (180º) and high performance CMOS, up to 1080P   Noise suppression and echo cancellation   H.264 video compression standard   Low illumination   Supports voice prompt   Volume configuration via App  Other Functions   Online upgrade via the mobile App   Supports motion detection and video recording   Supports the storage and playback via TF card   Equipped with a backlit call button   Equipped with a replaceable faceplate   Supports connecting to the mechanical chime   Equipped with a reset button                Model DS-KB6003-WIP  System  parameters  Processor High-Performance Embedded SOC Processor  Operation system Embedded Linux Operation System  Camera  parameters  Image sensor CMOS 2MP HD Colorful Camera  Light sensitivity Low Illumination  Lens f1.96 m...

Warnung! Produkt aus der Produktion genommen!

Garantie: 24 mon.

Datentabelle

DS-KB6403-WIP  Wi-Fi Video Doorbell        Key Features    Basic Functions    • Video intercom function, supporting the audiovisual communication with the mobile App directly  •Self-adaptive IR supplement  • High-performance embedded SOC processor  • P 54 standard    Video/Audio Functions    • HD video surveillance with ultra-wide angle (180º) and high performance CMOS, up to 1080P  • Noise suppression and echo cancellation  • H.264 video compression standard  • Low illumination  • Supports voice prompt  • Volume configuration via App    Other Functions    • Online upgrade via the mobile App  • Supports motion detection and video recording  • Supports the storage and playback via TF card  • Equipped with a backlit call button      • Equipped with a replaceable faceplate  • Equipped with a reset button  Specifications    ModelDS-KB6403-WIP    System parameters  ProcessorHigh-Performance Embedded SOC Processor  Operation systemEmbedded Linux Operation System    Camera parameters  Image sensorCMOS 2MP HD Colorful Camera  Light sensitivityLow Illumination  Lensf1.96 mm, F 2.2  Field of view180º (Horizontal), 96º (Vertical)    Video parameters <...

Garantie: 24 mon.

Datentabelle

DS-KB8112-IM  IP Video Intercom Door Station    Key Features  Basic Functions   Video intercom function, supporting the communication with the  master station, the client software, the app, and indoor stations   Access control function, supporting multiple door opening modes  (indoor station, master station, client software, app and web)   Self-adaptive IR supplement with max. 5-meter IR distance   High-performance embedded SOC processor   IK 9 and IP 66  Video/Audio Functions   HD video surveillance with WDR wide angle and high performance CMOS, up to 720P @ 30 fps   Noise suppression and echo cancellation   H.264 and MJPG video compression standard   Low illumination  Alarm Functions   Door magnetic alarm supported   Auto-uploads alarm messages to the master station or the client software  Remote Controls   Remote reboot, remote upgrade, time synchronization via NTP, and batch configuration function   Web remote access and OSD display supported   Mobile app supported   Motion detection supported  Additional Features   ISAPI (Internet Server Application Programming Interface) and ONVIF (Open Network Video Interface  Forum) supported, to ensure greater comp...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-KB8113-IME1

Ersatzproduktcode: 305302014

Garantie: 24 mon.

Datentabelle

DS-KB8113-IME1  Vandal-Resistant Doorbell        Key Feature  * Standard PoE  * 2 MP HD camera  * Noise suppression and echo cancellation  * Low illumination  * Access control functions  * Configuration remotely via Web        Specification  System parameters  Operation  system  Embedded Linux operation system  Flash 32 M  RAM 256 M  Video Parameters  Camera 2MP HD camera  Night vision Low illumination IR supplement mode:3 m  WDR True WDR  Field of view  Horizontal: 88° Vertical: 45° Diagonal:  106°  Video  compression  standard  H.264  Stream  Main stream: 1080p@30fps, 720p@30fps  Sub stream: D1  Resolution  Main stream: 1920 x 1080p, 720p  Sub stream: 704 x 576  Motion  detection  Support  Anti-flicker  frequency  50 Hz, 60 Hz  Audio parameters  Audio intercom Two-way audio communication  Audio input Built-in omnidirectional microphone  Audio output Built-in loudspeaker  Audio  compression  standard  G.711 U  Audio  compression  Rate  64 Kbps  Audio quality Noise suppression and echo cancellation  Network parameters  Wired network PoE, 10/100 M...

Warnung! Produkt aus der Produktion genommen!

Garantie: 24 mon.

Datentabelle

DS-KD3002-VM  Video Intercom Metal Door Station    Key Features    Basic Functions   Video intercom function   Access control function   Issues cards via door station, up to Max. 2500 cards, via outer door station, up to 50000 cards  (This function will be invalid if the card has been issued via the client.)   Card readers supported   Self-adaptive visible light supplement  Video/Audio Functions   HD video surveillance with high performance CMOS   Noise suppression and echo cancellation   H.264 video compression   Low illumination  Remote Control   Remote unlocking via the client or the app   Remotely answering the call via the client or the app  Alarm Functions   Tampering alarm and door magnetic alarm supported   Auto-uploads alarm messages to master station or the client once the duress code is entered to  open the door  Additional Features   Message notification function   Auto-uploads captured pictures to FTP or the client while unlocking the door                Model DS-KD3002-VM  System  parameters  Processor High-Performance Embedded SOC Processor  Operation system Embedded Linux Operation System  Video ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 24 mon.

Datentabelle

DS-KD8002-2A    DS-KD8002-VM         Video intercom function   HD video surveillance (Max. resolution 1280 x 720@25fps, WDR, 120° wide angle)   Self-adaptive light supplement   Access control function   Activating card via local station function (This function will be invalid if the card has been  activated via iVMS-4200)   Auto-uploading captured pictures to FTP or iVMS-4200 Client while unlocking the door   Door magnetic alarm and tamper-proof alarm function   Noise suppression and echo cancellation   Remote upgrade, batch setting, upgrade via USB flash disk functions    Metal Door Station    MAIN FEATURES    DS-KD8002-VM    AVAILABLE MODELS      Spec of DS-KD8002-VM Door Station www.hikvision.com  2                                  Model  Parameters  DS-KD8002-VM  System Parameters  Processor High-performance Embedded SOC Processor  Operation System Embedded Linux OS  Video Parameters  Camera  CMOS Low Illumination 1.3 MP HD Colorful  Camera  Video Compression  ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 24 mon.

Datentabelle
